1/4” No Tool 90˚ Elbow Push Fittings
1/4” No Tool 90˚ Elbow Push Fittings
Couldn't load pickup availability

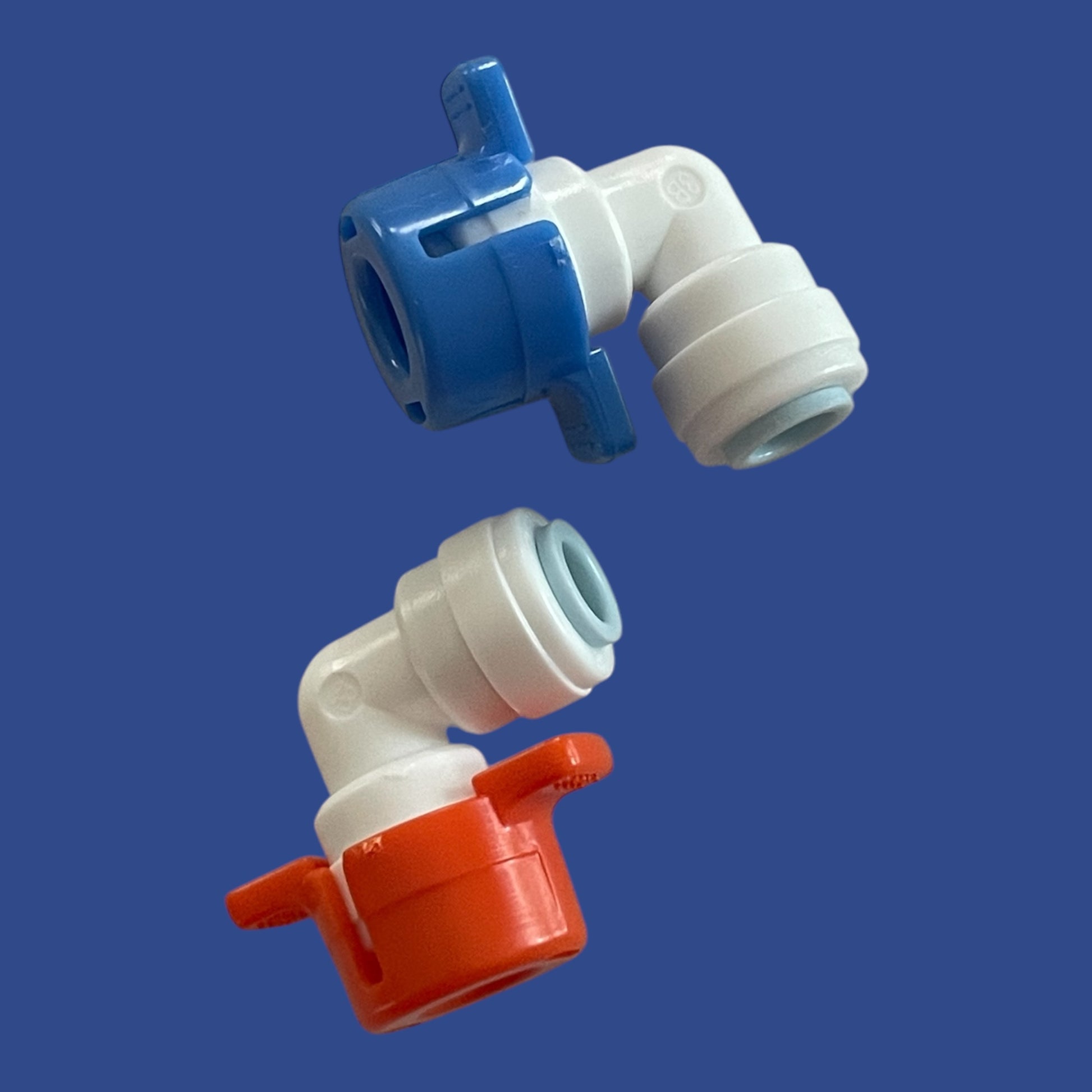

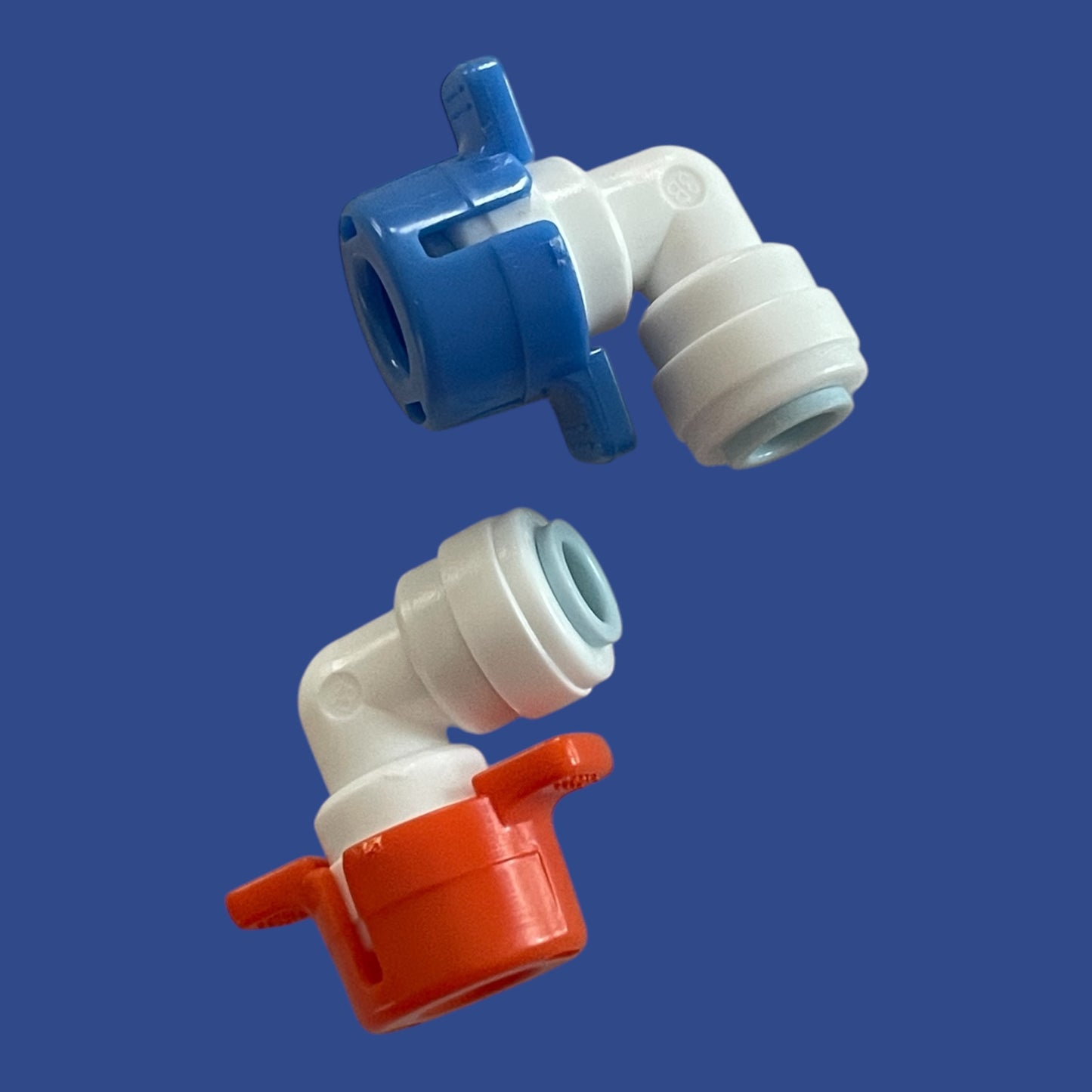

Patented no-tool design 90˚ elbow fittings are color coded (blue and orange).
Superior to standard 90˚ elbow push fittings, the unique pull tab design feature allows fittings to be easily removed from the filter ports for speedy filter changes without the need for any tools or fingernails and the color coding allows for easy visualization of the filter inlet and outlet ports, making filter changes a breeze.
To install fittings:
Push 1/4” poly tubing into port until you feel it seat and then to ensure the tubing is securely connected to the fitting, give the tubing a gentle tug, as if you are trying to pull it out of the port. If it has been installed correctly, you will not be able to pull the tubing out of the port. *When checking the connection, don’t pull on the colored tabs or push on the white collet (ring on outside of fitting port).
To remove tubing from filter ports:
Colored Tab side: using your first and second finger on either side of pull tabs and thumb on the white portion of the elbow, squeeze fingers toward thumb and the fitting will be able to slide off the filter port with ease.
White collet side: Push the white ring (collet) inward toward the port and at the same time pull the tube out of the port. You should not ever need to remove this side from the poly tubing during regular filter changes, you will only need to remove the colored side from the filter port.
Raintree™ water filters
Compatibility Chart
Wellsys
• JCP-8020
• Venus
• W5
• W9
• W9CT
• WS 11000+
• i12
• i15
• i16
Note: Some of the 2024 and newer Wellsys water cooler models now use twist-on style filters. Wellsys coolers made before 2024 will use our RainTree™ Replacement Filters. If you are unsure about compatibility, please reach out to us. We're always happy to help.
Flowline
• 8020
• 8020W
• 8020B
• 4011
• 4011W
• 4011B
• 350
Bluline
• 8020
Global
• G3
• G4
• G5
• G6
Hyundai / Waco / Wacotec
• Romeo 1
• Romeo 2
• Romeo 3
• Juliet 1
• Juliet 2
• Juliet 3
• W2 340S
• W2 310L
• Poseidon
Jintec
• Venus
• Titan
• Hercules
International H2O
• H2O-2500
• H2O-2500P
• H2O-500
Crystal Quest
• CQE-WC-00900 Hybrid Ultrafiltration Bottleless Water Cooler
• CQE-WC-00902 Hybrid Ultrafiltration and Reverse Osmosis Bottleless Water Cooler
• CQE-WC-05900 Sharp Ultrafiltration and Reverse Osmosis Bottleless Water Cooler
• CQE-WC-05902 Sharp Ultrafiltration Bottleless Water Cooler
• CQP-WC-05901 Turbo UF and RO
• CQP-WC-05903 Turbo UF
• CQE-WC-00906 Turbo UF
*Note: If you are transitioning from the original factory Crystal Quest water filters to our Raintree™ replacement filters, you will need to add our "no-tool fittings" and 3-4 feet of extra tubing to your order for the inital conversion as the fitting to tubing connection is a different style.
**If you have a Crystal Quest UF+RO cooler, you can use our filters (with the no-tool fittings), however, you should choose our Reverse Osmosis replacement filter set as we do not have a combination UF+RO filter set.
AquaVerve
• Pacifik PF5615
• Standard STD5615
• Oceanik XFK5615
• UNIV5615
Pure Water Coolers
PWC-1000T
PWC-1010
PWC-1500
PWC-2000
PWC-400
PWC-500
PWC-600
PWC-7000
PWC-3500
Vertex
FK-104 Vertex
PWC-1000T Vertex
PWC-1500 Vertex
PWC-1010 Vertex
PWC-3500 Vertex
PEC-7000
H2O-2200
H2O-2500
FilterWater
• FW-400
• FW-500
• FW-650
• FW-1500
• FW-2200
• FW-2500
• FW-FLOW
• FW- i020
• FW-210 under sink
