NO-TOOL Fittings (Set of 2)
NO-TOOL Fittings (Set of 2)
Couldn't load pickup availability

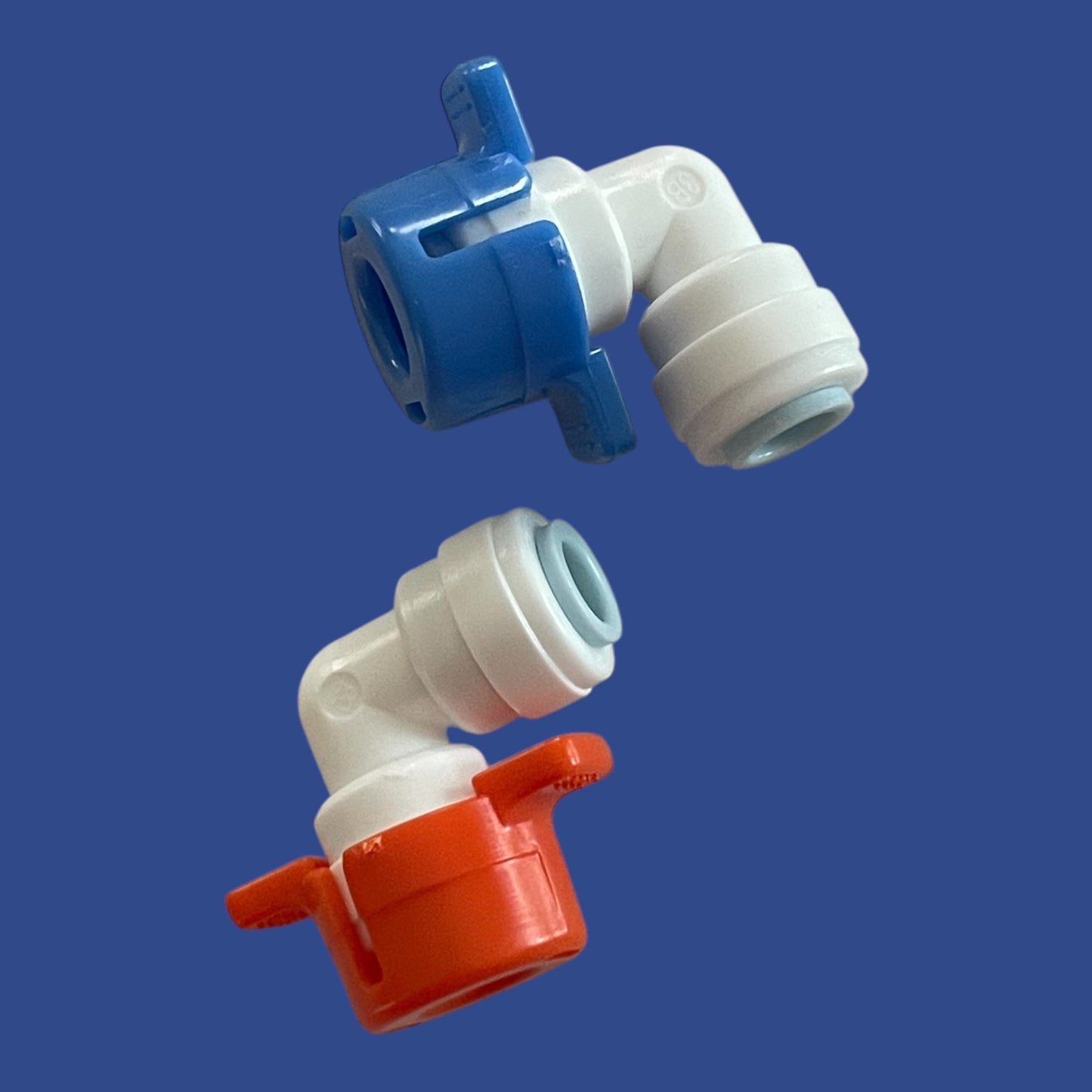

Patented no-tool design 90˚ elbow fittings are color coded (blue and orange).
The unique pull-tab design allows fittings to be easily removed from the filters for speedy filter changes, without the need for tools or fingernails. The color-coding allows for easy visualization of the filter inlets and outlets.
To install fittings:
Push 1/4” poly tubing into port until you feel it seat and then to ensure the tubing is securely connected to the fitting by giving the tubing a gentle tug, as if you are trying to pull it out of the port. If it has been installed correctly, you will not be able to pull the tubing out of the port. *When checking the connection, don’t pull on the colored tabs or push on the white collet ring on outside of fitting port.
To remove tubing from filter ports:
Colored Tab side: using your first and middle finger on either side of pull tabs and thumb on the angled portion of the elbow, press fingers toward thumb and the fitting will be able to slide off the filter port with ease.
White collet side: Push the white ring (collet) inward toward the port and at the same time pull the tube out of the port. You should not need to remove this side from the poly tubing during regular filter changes, you will only need to remove the colored side from the filter port.
